AR2 Smart Relay / PLC Family

AR2-A; Rail Mount Smart Relay / PLC Programmable with Ladder Logic
  • Free of charge Ladder Logic Editor with GUI running on PC, “GEMO LADDER EDITOR”; programming, simulation, download.
  • 256 lines, 5 contact column, 1 coil column
  • Rising / Falling Edge option for contacts
  • Up to 28 Discrete Inputs, built-in filter for each input
  • Up to 20 Discrete Outputs
  • 32 Timers (11 modes, 9 time bases)
  • 2 Timer Ticks (Event Counting)
  • 32 Counters (16 bits, Up/Down)
  • 32 Counter Comparators (with Offset feature)
  • 2 Fast Input Counters
  • 2 Independent State Machines (Internal Timer)
  • 3 Front Panel F Keys, with built in filter for each
  • 48 Auxiliary Relays
  • 16 Analog Comparators (with hysteresis)
  • Up to 4 x 0-10V Analog Inputs
  • Up to 2 x PTC Temperature Sensor Input
  • 32 Run Time Screens with internal timer; each having 4 sub screens
  • Welcome screen with 4 sub screens
  • 3 Level user programmable menu system
  • 4 Password contacts
  • 4 Configuration contacts
  • Real Time Clock - optional
  • Weekly / Yearly Alarms (for RTC option)
  • RS-485 port to connect to extension modules
  • Communicates with a MOSBUS RTU Master via AR2 MODBUS Gateway (AR2-S-24VDC-MB1)
  • Scan time < 10msec.
  • 2x16 character back-light LCD display
  • 18...32VDC or 100...240VAC supply options, 18Vdc Auxiliary Supply Out for discrete inputs

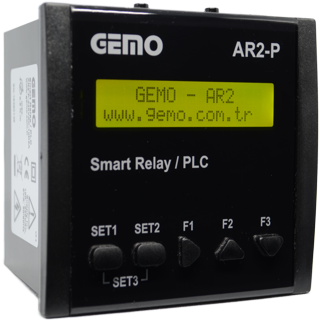

AR2-P; Panel Mount Smart Relay / PLC Programmable with Ladder Logic
  • 96mm x 96mm Enclosure front size
  • Free of charge Ladder Logic Editor with GUI running on PC, “GEMO LADDER EDITOR”; programming, simulation, download.
  • 256 lines, 5 contact column, 1 coil column
  • Rising / Falling Edge option for contacts
  • Up to 24 Discrete Inputs, built-in filter for each input
  • Up to 17 Discrete Outputs
  • 32 Timers (11 modes, 9 time bases)
  • 2 Timer Ticks (Event Counting)
  • 32 Counters (16 bits, Up/Down)
  • 32 Counter Comparators (with Offset feature)
  • 2 Fast Input Counters
  • 2 Independent State Machines (Internal Timer)
  • 3 Front Panel F Keys, with built in filter for each
  • 48 Auxiliary Relays
  • 16 Analog Comparators (with hysteresis)
  • Up to 4 x 0-10V Analog Inputs
  • Up to 2 x PTC Temperature Sensor Input
  • 32 Run Time Screens with internal timer; each having 4 sub screens
  • Welcome screen with 4 sub screens
  • 3 Level user programmable menu system
  • 4 Password contacts
  • 4 Configuration contacts
  • Real Time Clock - optional
  • Weekly / Yearly Alarms (for RTC option)
  • RS-485 port to connect to extension modules
  • Communicates with a MOSBUS RTU Master via AR2 MODBUS Gateway (AR2-S-24VDC-MB1)
  • Scan time < 10msec.
  • 2x16 character back-light LCD display
  • 18...32VDC or 100...240VAC supply options, 18Vdc Auxiliary Supply Out for discrete inputs
AR2-A-8D; Rail Mount Smart Relay / PLC Programmable with Ladder Logic
User Manual
Device Selection List
  • Free of charge Ladder Logic Editor with GUI running on PC, “GEMO LADDER EDITOR”; programming, simulation, download.
  • 256 lines, 5 contact column, 1 coil column
  • Rising / Falling Edge option for contacts
  • 8 Discrete Inputs, built-in filter for each input
  • 5 Discrete Outputs
  • 32 Timers (11 modes, 9 time bases)
  • 2 Timer Ticks (Event Counting)
  • 32 Counters (16 bits, Up/Down)
  • 32 Counter Comparators (with Offset feature)
  • 2 Fast Input Counters
  • 2 Independent State Machines (Internal Timer)
  • 3 Front Panel F Keys, with built in filter for each
  • 48 Auxiliary Relays
  • 16 Analog Comparators (with hysteresis)
  • 1 PTC Temperature Sensor Input
  • 32 Run Time Screens with internal timer; each having 4 sub screens
  • Welcome screen with 4 sub screens
  • 3 Level user programmable menu system
  • 4 Password contacts
  • 4 Configuration contacts
  • Real Time Clock - optional
  • Weekly / Yearly Alarms (for RTC option)
  • Scan time < 10msec.
  • 2x16 character back-light LCD display
  • 18...32VDC or 100...240VAC supply options, 18Vdc Auxiliary Supply Out for discrete inputs
AR2-G1; Rail Mount Extension Module for AR2
  • Up to 14 Discrete Inputs
  • 10 Discrete Outputs
  • Up to 2 x 0-10V Analog Inputs
  • 1 PTC Temperature Sensor Input
  • RS-485 port to connect to AR2
  • 18...32VDC or 100...240VAC supply options, 18Vdc Auxiliary Supply Out for discrete inputs
AR2-S-24VDC-MB1; MODBUS Gateway for AR2
  • 2 independent RS-485 communication ports
  • Connects to AR2 AR2 RS-485 communication line
  • Connects to MODBUS RS-485 line as a slave
  • Supported MODBUS protocols; only MODBUS RTU on a RS-485 line
  • Selectable communication speed for MODBUS connection
  • Selectable “Parity/Stop Bit” for MODBUS connection
  • Selectable slave address on MODBUS line
  • Data security on MODBUS line; selectable “Read” permission
  • Data security on MODBUS line; selectable “Write” permission
  • Selectable response delay; adaptable to slow/non-real time masters
  • LEDs on front panel; ability to monitor communication status
  • Loads communication parameters automatically from AR2; no extra/special user adjustment
  • Selectable internal line termination for MODBUS line for easy commissioning
  • Wide range isolated supply input;18..32VDC
